3U & 6U VITA62 VPX Power Supply (Conduction & Air Cooled)
PCI Systems Inc. manufactures a variety of rugged modular conduction cooled and convection cooled VITA 62 VPX Power Supplies in 3U and 6U form factor. The power supplies are with are designed, digitally controlled poly-phase technology on all voltage rails to minimize EMI/EMC, SSC on all stages and high reliability.
The products are available in 28V/ 270VDC /115VAC / 230VAC Single and Three Phase with power rating from 250W to 1000W. They are designed and build to meet Mil-EMI/EMC and Environmental standards. Single and Double Slot in Conduction and Air cooled models.
3U & 6U VITA62 VPX Power Supply (Conduction & Air Cooled)
| Model | Form Factor | Style | Type | Input | Power | Features | Cooling | ||
|---|---|---|---|---|---|---|---|---|---|

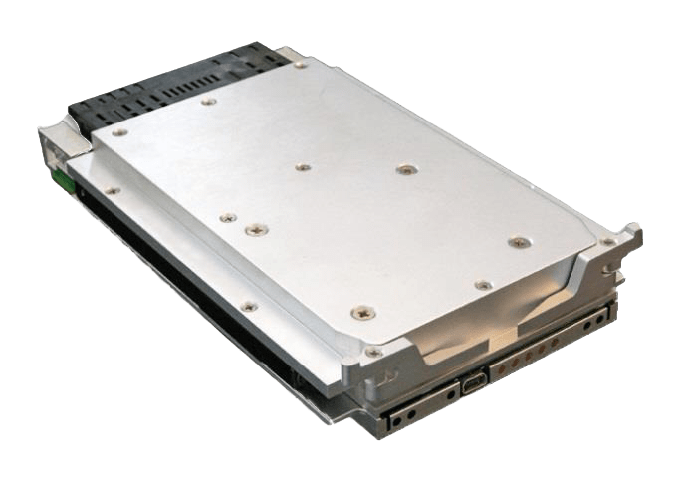

| PCI_800.101_C | ![](https://www.rebutor.com/wp-content/uploads/2024/03/3U-VPX-Power-Supply-122.png") | 3U, 1" | VITA 62 | DC | 28V | 250W | Conduction | ||
| PCI_800.102_C | | 3U, 1" | VITA 62 | DC | 28V | 400W | Conduction | ||
| PCI_800.103_C | 3U, 1.6" | VITA 62 | DC | 28V | 500W | 150ms holdup | Conduction | ||
| PCI_800.104_C | | 3U, 1" | VITA 62 | DC | 28V | 700W | Conduction | ||
| PCI_800.105_C | | 3U, 1" | VITA 62 | DC | 28V | 400W | Conduction | ||
| PCI_800.106_C | | 3U, 1" | VITA 62 | DC | 28V | 650W | Conduction | ||
| PCI_800.106_AIR | | 3U, 1" | VITA 62 | DC | 28V | 650W | Air | ||
| PCI_800.107_C | | 3U, 1" | VITA 62 | DC | 28V | 500W | 45000ft Altitude | Conduction | |
| PCI_800.107_AIR | | 3U, 1" | VITA 62 | DC | 28V | 500W | Air | ||
| New | PCI_800.107_HR | | 3U, 1" | VITA 62 | DC | 28V | 500W | High Reliablity 45000ft Altitude | Conduction |
| New | PCI_800.177 | | 3U, 1" | VITA 62 | DC | 28V | 500W | 70,000ft Altitude | Conduction |
| New | PCI_800.108_C | | 3U, 1" | VITA 62 | DC | 28V | 1000W | 28V SOSA | Conduction |

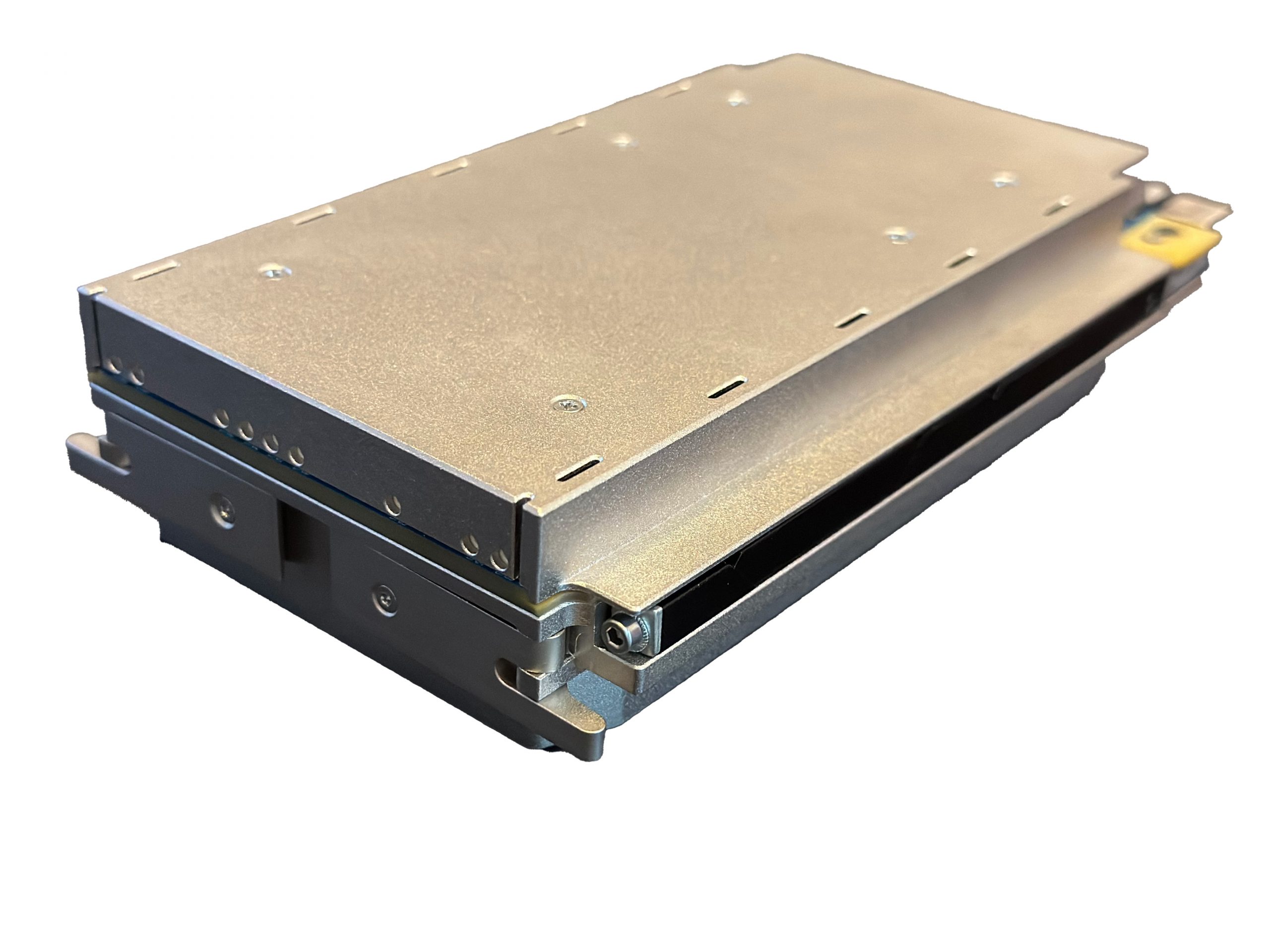

| PCI_800.109_C | ![](https://www.rebutor.com/wp-content/uploads/2024/03/3U-VPX-Power_Supply_1.622-scaled.jpg") | 3U, 1.6" | VITA 62 | DC | 28V | 500W | 380ms hold up | Conduction | |
| PCI_800.110_C | | 3U, 1" | VITA 62 | DC | 28V | 250W | 400ms hold up | Conduction | |
| PCI_800.111_C | | 3U, 1" | VITA 62 | DC | 28V | 750W | Conduction | ||
| PCI_800.116_C | | 3U, 1" | VITA 62 | DC | 270 VDC | 600W | Conduction | ||
| New | PCI_800.117_C | | 3U, 1" | VITA 62 | DC | 270 VDC | 850W | Conduction | |
| PCI_800.155_C | | 3U, 1" | VITA 62 | AC | 85-264VAC | 600W | Conduction | ||
| New | PCI_800.156_C | | 1.6" | VITA 62 | AC | 85-264VAC | 350W | 100msec holdup | Conduction |
| PCI_800.160_C | | 3U, 1" | VITA 62 | AC | 3P 115 VAC | 600W | 28V SOSA | Conduction | |
| New | PCI_800.161_C | | 3U, 1" | VITA 62 | AC | 3P 115 VAC | 1200W | 28V SOSA | Conduction |
| PCI_800.163_C | | 3U, 1" | VITA 62 | AC | 1P 115 VAC | 500W | Conduction | ||
| PCI_800.165_C | | 3U, 1.6" | VITA 62 | AC | 3P 115 VAC | 900W | 150ms holdup | Conduction | |
| New | PCI_800.170_C | ![](https://www.rebutor.com/wp-content/uploads/2024/03/800.156.jpeg") | 3U, 2" | VITA 62 | AC | 3P 115 VAC | 1200W | 120ms holdup | Conduction |
| PCI_800.305 | ![](https://www.rebutor.com/wp-content/uploads/2024/03/6U-VPX-Power-Supply-1-slot.png") | 6U, 1" | VITA 62 | DC | 28V | 500W | Conduction | ||
| PCI_800.306 | | 6U, 1" | VITA 62 | AC | 85-264VAC | 600W | 150ms holdup | Conduction | |
| PCI_800.307 | | 6U, 1" | VITA 62 | DC | 28V | 1200W | Non-isolated | Conduction | |
| PCI_800.310 | | 6U, 1" | VITA 62 | AC | 3P 115 VAC | 660W | 40ms holdup | Conduction | |
| PCI_800.311 | | 6U, 1" | VITA 62 | AC | 1P 115VAC | 1200W | 150ms holdup | Conduction | |
| PCI_800.312 | | 6U, 1" | VITA 62 | DC | 270 VDC | 1200W | 150ms holdup | Conduction | |
| PCI_800.313 | | 6U, 1" | VITA 62 | DC | 28V | 500W | Conduction | ||
| PCI_800.314 | | 6U, 1" | VITA 62 | DC | 28V | 1000W | Conduction | ||
| PCI_800.315 | | 6U, 1" | VITA 62 | AC | 85-264VAC | 700W | Conduction | ||
| PCI_800.316 | ![](https://www.rebutor.com/wp-content/uploads/2024/03/6U-VPX-Power-Supply-1.622.png") | 6U, 1.6" | VITA 62 | AC | 85-264VAC | 1200W | 50Hz/400Hz | Conduction | |
| PCI_800.316_AIR | ![](https://www.rebutor.com/wp-content/uploads/2024/03/6U-vpx-2.5-3inch-scaled.jpg") | 6U,2.5" | VITA 62 | AC | 85-264VAC | 1200W | 50Hz/400Hz | Air | |
| New | PCI_800.317 | | 6U, 1" | VITA 62 | DC | 28V | 2000W | 1000W / 2000W | Conduction |
| New | PCI_800.318 | | 6U, 1.6" | VITA 62 | AC | 3P 115 VAC | 1800W | Conduction | |
| New | PCI_800.319 | | 6U, 1.6" | VITA 62 | AC | 3P 115 VAC | 1200W | Conduction | |
| PCI_800.320 | | 6U, 1" | VITA 62 | DC | 270 VDC | 1400W | 100ms holdup | Conduction | |
| New | PCI_800.321 | | 6U, 2" | VITA 62 | DC | 270 VDC | 2400W | 100ms holdup | Conduction |
| New | PCI_800.322 | | 6U, 3" | VITA 62 | AC | 3P 115 VAC | 3600W | 50Hz/400Hz | Conduction |
| PCI_800.323 | | 6U, 1" | VITA 62 | AC | 3P 115 VAC | 1400W | 50Hz/400Hz | Conduction |
