3U Compact PCI (cPCI) Power Supply AC & DC Input

Power System Technology

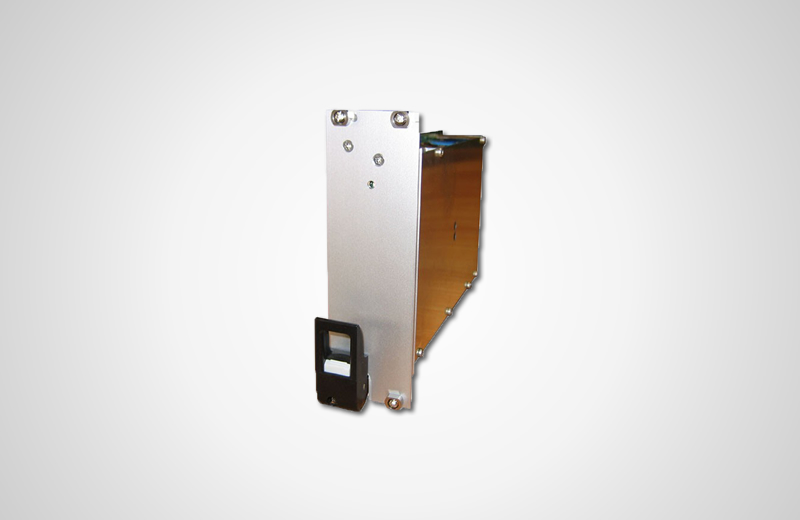

Power System Technology offers 3U cPCI power supply with standard four output voltages and power rating up to 300W. The CPCI AC Series is compliant with PICMG 2.11 standard, incorporates input and output protections and filtering, signalling features required in severe environments for Industrial, Defense, Avionic applications.

Description : Compact PCI 300W
Input type : AC-DC
Inputs : 85-265 Vac or 100-350Vdc IN
Outputs : 4
Output voltage : 3V3/50A, 5V/40A, 12V/1A, -12V/1A or 3V3/50A, 5V/40A, 12V/5A, -12V/1A
Power : 300W
Particularity : Fit the PICMG 2.11 standard
Approvals : Built to meet EN55022A, MILSTD461E, EN 61000-4-5, MIL-STD 810F
Application : For severe environment
Dimensions : 3U x 8TE x 160mm

Advice_logo

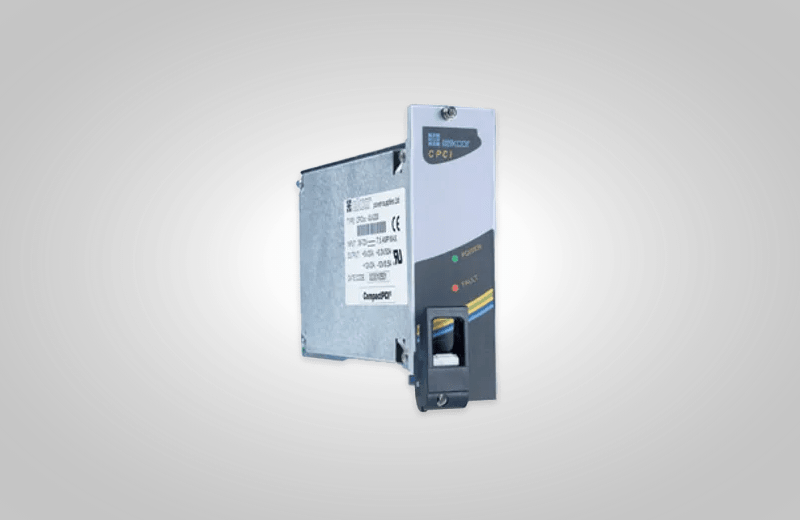

Advice-Telkoor offers 3U cPCI AC (90-264VAC) Input and DC 24V/48V power supply with standard four output voltages and power rating up to 300W. The CPCI AC & DC Input Series is compliant with PICMG 2.11 standard, incorporates input and output protections and filtering, signalling features required in severe environments for Industrial, Defense, Avionic applications.

Description : Compact PCI 200W-300W
Input type : AC-DC (230VAC), DC-DC (24/48V)
Inputs : 85-265 Vac or 24V/48VDC IN
Outputs : 4
Output voltage : 3V3/50A, 5V/40A, 12V/1A, -12V/1A or 3V3/50A, 5V/40A, 12V/5A, -12V/1A
Power : 300W
Particularity : Fit the PICMG 2.11 standard
Approvals : Built to meet EN55022A, MILSTD461E, EN 61000-4-5, MIL-STD 810F
Application : For severe environment
Dimensions : 3U x 8HPx 160mm

ModelProductAdvice Part#Form FactorInputWatts
CPCI-DC-3U-200/24 900-3011-003U-8HP18-36VDC200W
CPCI-DC-3U-200-3003 900-3003-003U-8HP36-72VDC200W
CPCI-DC-3U-300/24-4011 900-4011-003U-8HP18-36VDC300W
CPCI-DC-3U-300-4003 900-4003-003U-8HP36-72VDC300W

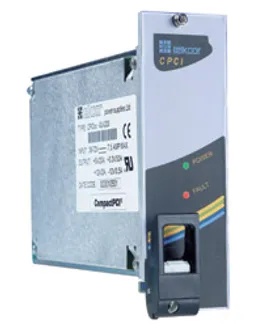

CPCI-AC-3U-250-3002 900-3002-003U-8HP85-264VAC250W
CPCI-AC-3U-300-4002 900-4002-003U-8HP85-264VAC250W
