Military Custom Power Design

Rebutor leverages its Technical Selling Expertise and works very closely with its Customers – Design Engineers from Project initial stage in arriving at the Functional, Mechanical, EMI/EMC and Environmental standards which the power supply and overall LRU qualification desired as per various Mil-Standards.

The Custom Mil Power Supply offering range includes Single or Multi-Output AC-DC, DC-DC, Battery Charger, Dual Input UPS, VME/VPX Power Supply from 25W – 50KW or higher and are designed to meet Mil-Standards (or) tested, qualified / certified at external laboratories.

BDM600 Series

Mil Grade Multi-Output 600W DC-DC Converter with 270VDC input for Receiver – Naval Radar Application. Designed to meet Mil-Std-461F/ 810G / 704F/ JSS55555

BDM750 Series

Mil Grade Multi-Output 750W DC-DC Converter with 270VDC input for Transmitter – Naval Radar Application. Designed to meet Mil-Std-461F/ 810G / 704F / JSS55555

BAM400 Series

Mil Grade Multi-Output 750W DC-DC Converter with 3P 115VAC 400Hz input for RF Antenna System–Airborne Radar Application. Designed to meet Mil-Std-461F/ 810G / 704F

KAM2400-174

KAM2400 Series

Mil Grade Multi-Output 750W DC-DC Converter with 1P 230VAC, 50Hz input for C4I System 28VDC, 2.4kW–Ground Missile Launcher Application. Designed to meet Mil-Std-461F/ 810G / 704F / JSA55555 specs

C_CP5100 Series

Mil Grade Single Output 5KW AC-DC/ DC-DC Power Supply unit (3U/5U) Modular, Single Output, Ground Radar Application. Can be used in parallel for several KW power rating. Designed to meet Mil-Std-461F/ 810G / 704F Standards

CW5300/ CW5500 Series

Mil Grade Single Liquid Cooled 8kW-15kW AC-DC/ DC-DC Power Supply unit, Single Output, Ground Radar Application. Can be used in parallel for several KW power rating. Designed to meet Mil-Std-461F/ 810G / 704F Standards.

K15XX Series-177

K15xx Series

Compact, liquid cooled Mil Grade 3Phase AC-DC Power Supply, 5Ux19” plug-in module 28V/10KW, hot-plug-in, parallel connection for several kilowatts of power.

K18XX Series-178

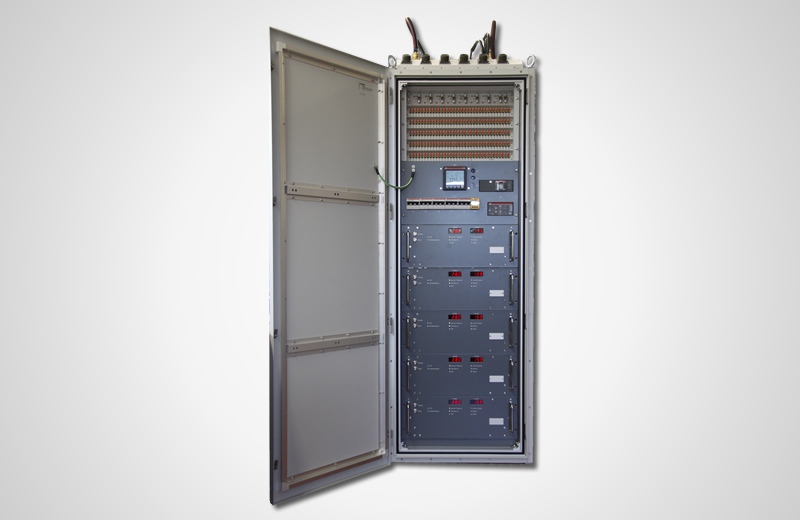

K18XX

High Power Modular Power System, Liquid cooled Mil Grade 3 Phase AC-DC Power Supply, 19” Rugged Cabinet configuration and can deliver 28V or 320V / 50KW or higher.
