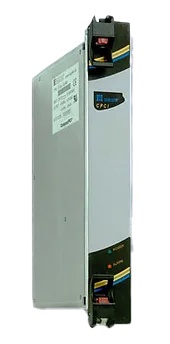

6U Compact PCI Power Supply AC & DC Input

Advice-Telkoor

Advice-Telkoor offers 6U cPCI AC (90-264VAC) Input and DC 24V/48V power supply with standard four output voltages and power rating up to 600W. The CPCI AC & DC Input Series is compliant with PICMG 2.11 standard, incorporates input and output protections and filtering, signalling features required in severe environments for Industrial, Defense, Avionic applications.

Description : Compact PCI 300W-600W
Input type : AC-DC (230VAC), DC-DC (24/48V)
Inputs : 85-265 Vac or 24V/48VDC IN
Outputs : 4
Output voltage : 3V3, 5V/ 12V/ -12V
Power : 300W-600W
Particularity : Fit the PICMG 2.11 standard
Approvals : Built to meet EN55022A, MILSTD461E, EN 61000-4-5, MIL-STD 810F
Application : For severe environment
Dimensions : 6U x 8HPx 160mm

ModelImageAdvice Part#Form FactorInputWatts
CPCI-AC-6U-350-24R-6001 900-6601-00006U-8HP18-32VDC350W
CPCI-AC-6U-350-6001 900-6001-006U-8HP18-36VDC350W
CPCI-AC-6U-400-6003 900-6003-006U-8HP36-72VDC400W
CPCI-AC-6U-600-6113 900-6113-006U-8HP36 -72VDC600W
CPCI-AC-6U-500-7003 900-7003-006U-8HP36 -72VDC500W
CPCI-AC-6U-400-6002 900-6002-006U-8HP85-264VAC400W
CPCI-AC-6U-400-R-6602 900-6602-006U-8HP85-264VAC400W
CPCI-AC-6U-400-7002 900-7002-006U-8HP85-264VAC500W
CPCI-AC-6U-400-6112 900-6112-006U-8HP85-264VAC600W
