Railway Certified DC-DC Converter 3W – 600 W

Cincon has a series of ultra-wide input range DC-DC converters to cover the various distributed voltages. One of the advantages of a wide input DC converter, is that rather than buying and stocking multiple products, one can cut cost and inventory by using a single product that supports the various voltage requirements in the railway system. The widest input range is up to 18:1 and the rest of wide input ranges are 14:1, 12:1, 8:1. The power range of the ultra-wide input range DC-DC converters starts from 10W to 200W.

Cincon also provides a series of plug-in chassis-mount modules. The modularized Plug-in Cincon CMFC/CMFD series is a value-added series which could help you in solving the unpleasant EMC issues. Cincon also offers a detailed application note as the guideline tool to reduce your development time.

ModelPowerInput VoltageOutput VoltageFeatures
NEWEC7AW18 10W8.5-160V DC5V, 12V, 15V, ±5V, ±12V, ±15V3KVac Isolation UL62368-1 & CBEN45545-2 EN50155 Compliant
EC7BW18 20W8.5-160V DC12V, 15V, 5V, ±12V, ±15V, ±24V3KVac Isolation UL62368-1 EN45545-2 EN50155 Compliant
NEWECB40W18 40W8.5-160V DC5V, 12V, 15V, 24V, 54V 3KVac Isolation UL62368-1 EN45545-2 EN50155 Compliant
ModelPowerInput VoltageOutput VoltageFeatures
NEWEC7AW18-ECRT/EDRT 10W10-160V DC5V, 12V, 15V, ±5V, ±12V, ±15V3KVac Isolation EN50121-3-2/ EN45545-2 Compliant Low Inrush Current Input Reverse Polarity Protection EN50155 Class S3 / C2 Without External Capacitor EN50155 Compliant
EC7BW18-ECRT/EDRT 20W10-160V DC12V, 15V, 5V, ±12V, ±15V, ±24V3KVac Isolation EN50121-3-2/ EN45545-2 Compliant Low Inrush Current Input Reverse Polarity Protection EN50155 Class S3 / C2 Without External Capacitor EN50155 Compliant
ModelPowerInput VoltageOutput VoltageFeatures
NEWCQB75W14 75W12-160V DC5V, 12V, 15V, 24V, 28V, 54V3KVac Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant
NEWCQB100W14 100W12-160V DC5V, 12V, 15V, 24V, 28V, 54V3KVac Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant

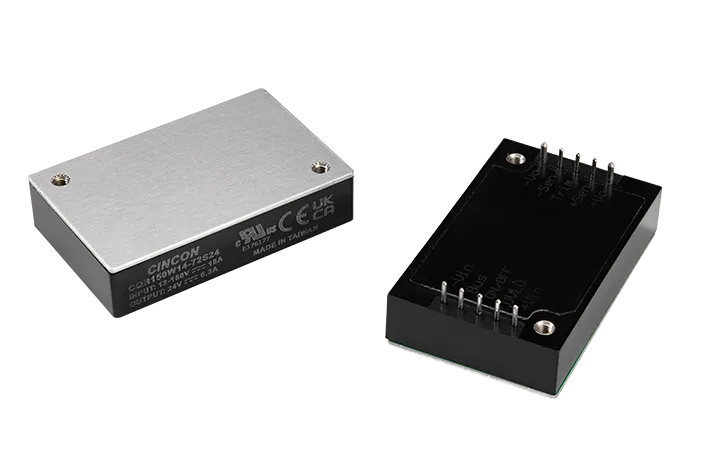

NEWCQB150W14 150W12-160V DC5V, 12V, 15V, 24V, 28V, 54V3KVac Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant
ModelPowerInput VoltageOutput VoltageFeatures
CQB50W12 50W14-160V DC5V, 12V, 24V, 48V3KVdc Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant
CQB50W12-72SXX-CMFC(D) 50W14-160V DC12V, 24V, 48V, 5VScrew Terminal Built in filter Baseplate Cooled EN45545-2 EN50155(EMC)
CHB150W12 150W14-160V DC5V, 12V, 15V, 24V, 48V3KVac Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant
CHB200W12 200W14-160V DC12V, 15V, 24V, 48V3KVac Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant
ModelPowerInput VoltageOutput VoltageFeatures
CQB50W8 50W9-75V DC12V, 15V, 24V, 28V, 48V3KVac Isolation UL62368 & CB EN45545-2 EN50155 Compliant M2 grade option
CQB50W8-36SXX-CMFC(D) 50W9-75V DC12V, 15V, 24V, 28V, 48V3KVac Isolation Screw Terminal Built in filter Baseplate Cooled EN45545-2 EN50155(EMC)
CQB75W8 75W9-75V DC12V, 15V, 24V, 28V, 48V3KVac Isolation UL62368 & CB EN45545-2 EN50155 Compliant M2 grade option
CQB75W8-36SXX-CMFC(D) 75W9-75V DC12V, 15V, 24V, 28V, 48V3KVac Isolation Screw Terminal Built in filter Baseplate Cooled EN45545-2 EN50155(EMC)
CHB150W8 150W9-75V DC12V, 15V, 24V, 28V, 48V1.5KVDC Isolation UL60950-1
ModelPowerInput VoltageOutput VoltageFeatures
EC3AW 3W9-36V, 18-72 VDC12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V500/1.5K/3KVdc Isolation
EC3SAW 3W9-36V, 18-72 VDC12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVDC Isolation Input UVP
EC4AW 6W9-36V, 18-72 VDC12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5K/3KVdc Isolation
EC4SAW 6W9-36V, 18-75 VDC12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVDC Isolation
EC5SAW 10W9-36V, 18-75 VDC12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V3KVDC Isolation
EC6SAW 8W9-36V, 18-75V DC12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation EN50155 Compliant
EC6AW-110 10W43-160V DC12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant
EC2SBW 10W9-36V, 18-75V DC12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation
NEWEC2SBW-H 10W9-36V, 18-75V DC3.3V, 5V, 12V, 15V, ±12V, ±15V3KVdc Isolation M2 grade option
EC8AW 15W9-36V, 18-75V DC12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation EN55032 Class A
EC3SBW 15W9-36V, 18-75V DC12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation
EC5BW 15W9-36V, 18-75V DC12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation EN55032 Class A
EC7BW 20W9-36V, 18-75V DC3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V 1.5KVdc Isolation EN45545-2 EN50155 Compliant
EC7BW-110 20W43-160V DC5V, 12V, 15V, ±12V, ±15V3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant
EC1SC 20W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5VEN55022 Class A
EC4SBW 20W9-36V, 18-75V DC12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation
EC5SBW 30W9-36V, 18-75V DC12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation UL62368-1 M2 grade option
EC9BW 30W9-36V, 18-75V DC12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation
ECLB40W-110 40W43-160V DC12V, 15V, 3.3V, 5V, ±12V, ±15V, ±24V3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant
ECLB40W 40W9-36V, 18-75V DC12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation With Mounting Inserts
CQE50W 50W9-36V, 18-75V DC12V, 15V, 24V, 3.3V, 48V, 5V1.5KVDC Isolation UL60950-1
CHB50W 50W9-36V, 18-75V DC12V, 15V, 24V, 28V, 3.3V, 48V, 5V1.5KVDC Isolation UL60950-1

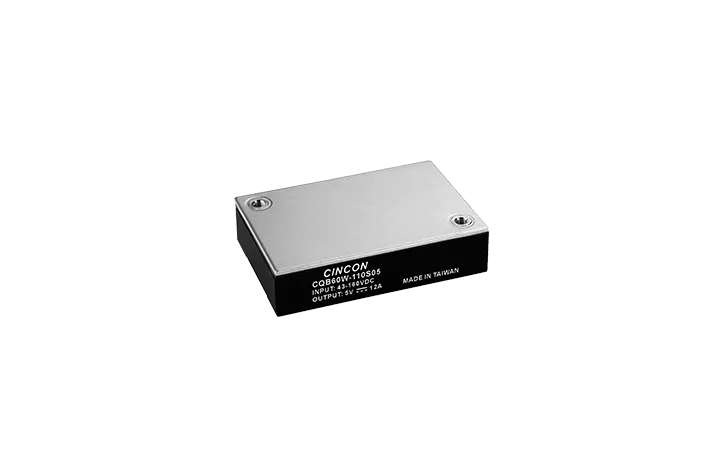

CQB60W-110S 60W43-160V DC12V, 15V, 24V, 28V, 48V, 5V3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant
ECLB60W 60W9-36V, 18-75V DC3.3V, 5V, 12V, 15V, ±12V, ±15V1.5KVdc Isolation With Mounting Inserts M2 grade option
ECLB75W 75W9-36V, 18-75V DC5V, 12V, 15V, ±12V, ±15V, ±24V2.25KVdc Isolation With Mounting Inserts M2 grade option
CQB75W 75W9-36V, 18-75V DC12V, 15V, 24V, 3.3V, 5V1.5KVDC Isolation UL60950-1
CHB75W 75W9-36V, 18-75V DC12V, 15V, 24V, 28V, 3.3V, 48V, 5V1.5KVDC Isolation UL60950-1
CQB100W 100W9-36V, 18-75V DC12V, 15V, 24V, 3.3V, 5V1.5KVDC Isolation UL60950-1
CQB100W-110S 100W43-160V DC12V, 15V, 24V, 28V, 48V, 5V3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant
CQB100W-110SXX-CMFC(D) 100W43-160V DC5V, 12V, 15V, 24V, 28V, 48VScrew Terminal Built in filter Baseplate Cooled EN45545-2 EN50155(EMC)
CHB100W 100W9-36V, 18-75V DC12V, 15V, 24V, 28V, 3.3V, 48V, 5V1.5KVDC Isolation UL60950-1
CQB150W-110S 150W43-160V DC3.3V, 5V, 12V, 15V, 24V, 28V, 48V3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant
CQB150W-110SXX-CMFC(D) 150W43-160V DC3.3V, 5V, 12V, 15V, 24V, 28V, 48VScrew Terminal Built in filter Baseplate Cooled EN45545-2 EN50155(EMC)
CQB150W 150W9-36V, 18-75V DC12V, 15V, 24V, 28V, 48V, 5V2250Vdc Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant M2 grade option
CHB150W 150W9-36V, 18-75V DC12V, 15V, 24V, 28V, 3.3V, 48V, 5V1.5KVDC Isolation UL60950-1
CHB200W 200W9-36V, 18-75V DC12V, 15V, 24V, 28V, 3.3V, 48V, 5V1.5KVDC Isolation UL60950-1
CHB200W-110S 200W43-160V DC5V, 12V, 24V, 28V, 48V3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant
CHB200W-110SXX-CMFC(D) 200W43-160V DC5V, 12V, 24V, 28V, 48VScrew Terminal Built in filter Baseplate Cooled EN45545-2 EN50155(EMC)
CHB300W-110 300W43-160V DC12V, 24V, 28V, 3.3V, 48V, 5V3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant
CHB300W-110SXX-CMFC(D) 300W43-160V DC3.3V, 5V, 12V, 24V, 28V, 48VScrew Terminal Built in filter Baseplate Cooled EN45545-2 EN50155(EMC)
CHB300W 300W9-36V, 18-75V DC12V, 15V, 24V, 28V, 48V, 5V1.5KVDC Isolation UL62368-1
CFB400WT 400W9-36V, 18-75V DC12V, 24V, 28V, 48V, 5V1.5KVDC Isolation UL60950-1
CFB600W-110S 600W43-160V DC12V, 24V, 28V, 48V2250Vdc Isolation UL60950-1 EN45545-2 EN50155 Compliant
CFB600W-110SXX-CMFD 600W43-160V DC12V, 24V, 28V, 48VScrew Terminal Built in filter Baseplate Cooled EN45545-2 EN50155(EMC)
ModelPowerInput VoltageOutput VoltageFeatures
CQB100-110S 100W66-160V DC12V, 24V, 3.3V, 5V2250Vdc Isolation UL60950-1 EN45545-2 EN50155 Compliant
CHB100-110S 100W66-160V DC12V, 15V, 24V, 48V3KVac Isolation EN45545-2 EN50155 Compliant
CHB150-110S 150W66-160V DC12V, 24V, 5V2250Vdc Isolation UL60950-1 EN45545-2 EN50155 Compliant
CQB200 200W18-36V DC24V, 28V2250Vdc Isolation UL62368-1 EN45545-2
18:1 INPUT RANGE
ModelPowerInput VoltageOutput VoltageFeatures
EC4AW-H6 6W9-36V, 18-72V DC12V, 5V, ±12V, ±15V6KVdc Isolation Design Meets Reinforced Insulation EN55032 Class A 5uA Leakage Current
PowerInput VoltageOutput VoltageFeatures
FM10/20 10-20A75VInput 75V Maximum
FM30R 30A80VInput 80V Maximum
FM05D 5A200VInput 200V Maximum
FM10D 10A200VInput 200V Maximum
